Electric Digital Tankless Online Slim

  • Home
  • Products
  • Tankless Online Electric Water Heaters
  • Electric Digital Tankless Online Slim

Select the right water heater for your needs. Choose from the options below and click

Tankless

4.5/ 5.5/ 6.8/ 8.9kW -1ph 230V 9.0/11.0/13.0kW -3Ph 230V

  • Leaflet

    pdf
  • MRP ₹ 4.5kW-1ph Rs10,499/- 5.5kW-1ph Rs12200/- 6.8kW-1ph Rs13600/-, 8.9 kW-1ph Rs19399/- 9kW-3ph Rs23,150/- 11 kW-3ph Rs24500/- 13kW-3ph Rs29500/- w.e.f.

Outstanding Features

  • ONLINE HEAT EXCHANGER TECHNOLOGY



    The heating element and water pipe are molded together for quick
    transfer of heat from element to the water without contact. This ensures quick heating, long life and safety

    The heating element and water pipe are molded together for quick transfer of heat from element to the water without contact. This ensures quick heating, long life and safety



  • DIGITAL TEMPERATURE CONTROLLLER

    Automatically cuts off at temperature set by you. Selection range 35°C to 65°C

  • Heater On Indicator

    Heater On Indicator, glows if the water is heating

  • Over Heat Indicator

    Over Heat  Indicator, glows if the water has over heated and the thermal cutout safety switch has operated.

  • DIGITAL TEMPERATURE INDICATOR AND CONTROLLER

    Only in digi models

  • ABS PLASTIC OUTER BODY

    Compact. Corrosion free. Shock proof

  • MICROPROCESSOR CONTROL

    System adjusts heating power output to maintain the set temperature even when the water flow rate is altered.

  • OVERHEAT PROTECTION

    Super safe as it prevents the heat exchanger from overheating (i.e. more than 90 deg C)

  • FLOSENSOR TECHNOLOGY

    Avoids dry heating as it senses the water flow and switches ON the heating element and switches OFF when there is no water flow.

  • Power Safety Buzzer

    Power Safety Buzzer (PSB) Buzzer goes on with few seconds, if the main switch is kept ON and the water tap is turned Off.

Other Details

Models Capri Digiflo i Slim
Rated Voltage(volts) 230 Volts
Rated Power(kWatt) 5.5 / 7.0 / 9.0kW 1Ph,  11.0 / 13.0kW 3Ph
Rated Current Circuit Breaker (Ampere) 32A / 40A / 63A,  40A / 40A
Frequency(Hz) 50Hz
Phase 1 Phase   , 3 Phase  as mentioned in Power kW

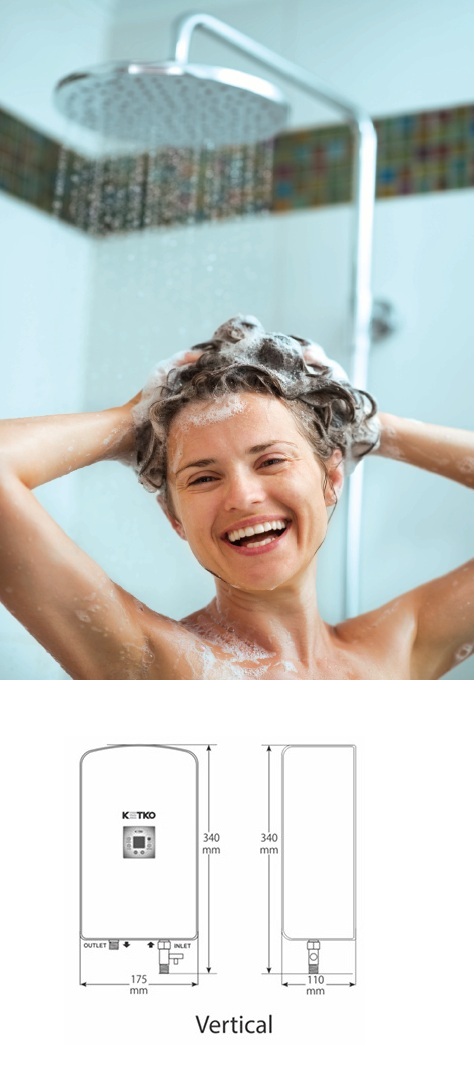

Dimentions(In mm) 340x175x110
Water proof rating Drip proof
Hot water limit 50°C to 60°C  Digital Control
Water flow start limit 50°C to 60°C >1.5L/min
Heating technology Tankless + Instant Heating
Pressurized Yes
Installation Type Multi Point Suitable for rain shower & bathtub
Outer Enclosure ABS, white color
Inlet/outlet pipe connection G1/2
